Magnetic Distribution Measurement System
The surface magnetic distribution measurement system is mainly used to measure the surface magnetic distribution curve of permanent magnet multi-pole magnetic ring and permanent magnet cylinder. The equipment can automatically detect the peak value, Angle, area, width and half-height width of each magnetic pole. It can automatically judge the number of poles of the magnetic ring and the polarity of the magnetic pole, and can draw X-Y curve, polar coordinate curve and magnetic field 3D diagram. The magnetic field of the ring and cylinder can also be scanned in all directions.
  • DX-2012RA Multipolar Magnetic Field Distribution Tester (manual version)

    DX-2012RA Multipolar Magnetic Field Distribution Tester (manual version)

    The DX-2012RA magnetic distribution measuring device (manual model) has been carefully designed to test the table body and accurately control the motor to achieve accurate measurement of the surface magnetic field distribution. It is an indispensable tool for the correct evaluation of magnet magnetization accuracy and magnetic ring quality inspection.

  • DX-2012RB magnetic distribution measuring device

    DX-2012RB magnetic distribution measuring device

    The DX-2012RB magnetic distribution measuring device (automatic version) provides test reports such as XY coordinates, P-coordinates, 3D magnetic field distribution and harmonic analysis with respect to the fundamental wave, providing accurate magnetic field distribution data for motor design.

  • DX-2012RC space magnetic field distribution measuring instrument

    DX-2012RC space magnetic field distribution measuring instrument

    DX-2012RC cabinet type magnetic distribution measuring instrument adopts cabinet integrated design, adopts three axes with higher moving precision, increases the test function of multi-pole rotor oblique charging angle, and the software also increases the plane magnetic field distribution measurement to meet the test.

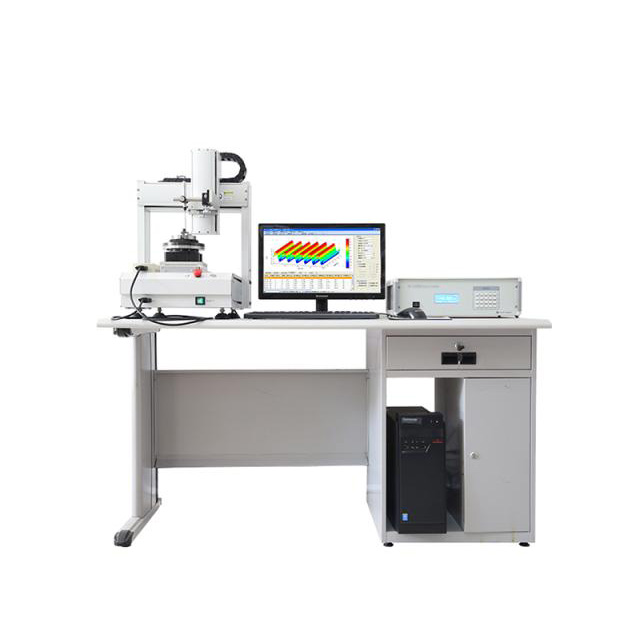

  • DX-2012RD space magnetic field distribution measuring instrument

    DX-2012RD space magnetic field distribution measuring instrument

    The DX-2012RD magnetic field distribution measuring instrument can accurately test the spatial magnetic field distribution, and provide XY coordinates, P polar coordinates, 3D magnetic field distribution and harmonic analysis of relative fundamental waves. It satisfies the quality inspection of permanent magnets, permanent magnet motor stators or rotors, DC magnetic field coils, and electromagnet.
