DX-150 Full-Digital Gauss/Tesla Meter is designed for applications requiring high precision, high-resolution magnetic field measurement. It is an intelligent solution against the traditional analog, digital table header type Gauss / Tesla meter. It is a high precision intelligent apparatus, which integrates measuring, storage, industrial control, communication just in one machine. DX-150 takes advantage of microprocessor technology to provide you with high-precision, higher refresh rate and display resolution and high measurement repeatability and stability in your research and production.With simple and convenient operation panel and the full menu, 4 ¾-bit resolution readings, a high-resolution 1 / 60000, so that you can view 0.1Gs weak changes in the high magnetic field measurement. It has a maximum range up to 30KG (3T). It has a large capacity of data storage and you can review data according to storage time. In one word, it is suitable for a full range of DC magnetic field measurements, and it is mainly sold to research institutes and various types of production units.

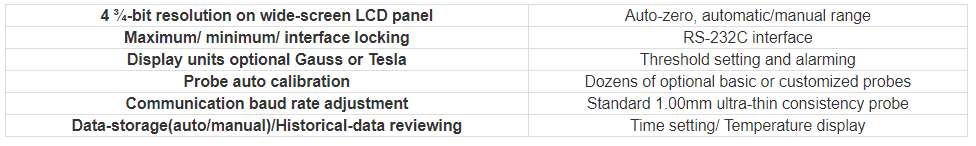

Features

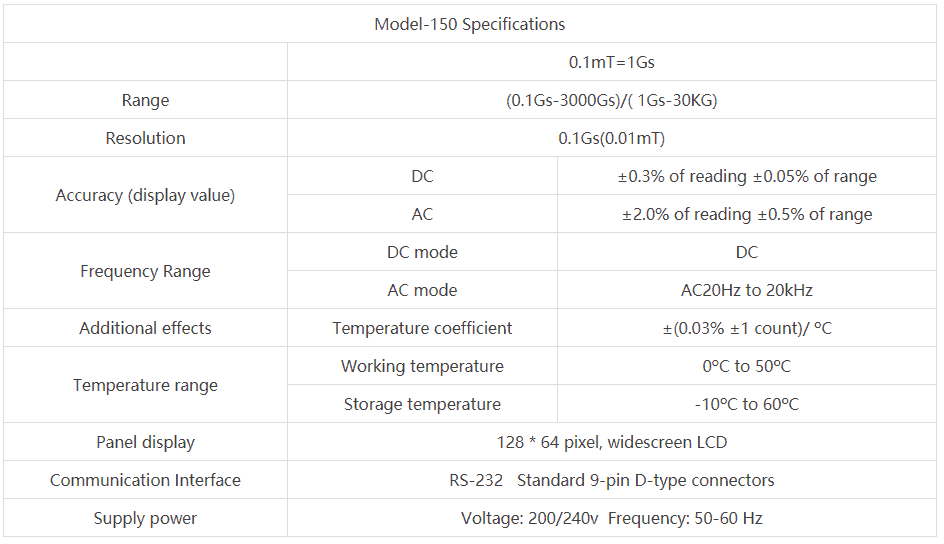

Specifications

Peripheral: computer, oscilloscope, industrial equipment, bus system



Using occasions

Permanent magnet material surface magnetic field, DC motors, speakers, magnetic separator, and permanent magnetic separator magnetic field of work. Magnetic circuit gap and slit field within the magnetic field. Also it can be applied to the detection machining residual magnetic field of the goods, distribution of magnetic field, the remaining magnetic after demagnetization, the magnetic of motor and magnetic flux leakage of electromagnetic fields and other kinds of magnetic field intensity of magnetic induction.



Main Function

*High –precision magnetic field measurement

* Automatic / Manual Storage: This machine provides 500 data storage space and automatically store data according to set time (1-60 seconds). Also it provides random storage and can be reviewed as per time and stored order.

*Max / Min Lock: Turn on or off the peak measurement function.Capture and display the highest and the lowest magnetic field readings, and lock the interface.
First gear : Maximum/minimum holding
Second gear: interface locking
Third gear: relieving

*Auto zeroing mode
1）relative zero magnetic field mode: put the probe into chamber of Zero-Gauss calibrator, zeroing and store the data.
2）eliminate geomagnetic field mode: horizontally put the probe make sure it isto be vertical against geomagnetic field, zeroing and store the data.

*Communications and drawing:

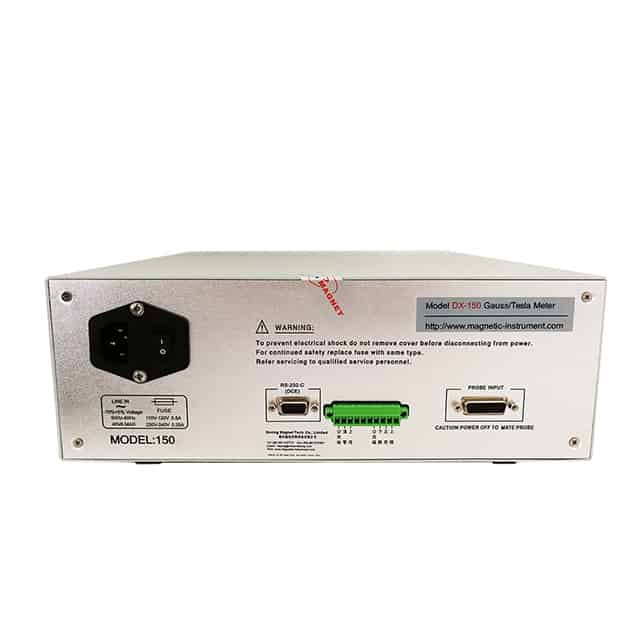

The RS-232C interface function
1) the user can use the computer to read test data, draw various survey map with professional mapping software, and transmit and print chart
2) with serial real-time transmission function of real time monitoring real-time data in a computer
3) query real-time data through fixed instruction

DX-150 Optional accessories

Remote control system
Gauss meter professional mapping software
Zero Gauss chamber
Industrial control output components

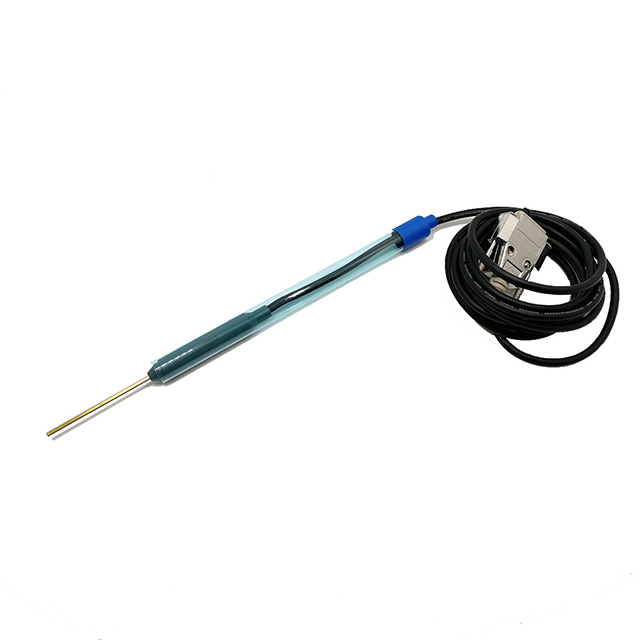

Model

L(cm) approx

T(mm) max

W (mm)

A (mm)

Active area  (mm)

Frequency range

Full Scale (Standard)

Magnetic  linearity (%rdg)

Operating temp range

Zero Temp coefficient (max)

Temp coefficient (max)

Stem material

MCDX800F

6/8/10

1

2.6

1±0.1

0.15

DC-30kHZ

30kG

±0.2% to 30kG

-10°Cto +100°C

±0.08 G/ºC

±0.03%/C°

Brass

MCDX801F

6/8/10

0.8

2.2

1±0.1

0.15

DC-30kHZ

30kG

±0.2% to 30kG

-10°Cto +100°C

±0.08 G/ºC

±0.03%/C°

Brass

MCDX802F

6/8/10

0.6

1.55

1±0.1

0.15

DC-30kHZ

30kG

±0.2% to 30kG

-10°Cto +100°C

±0.08 G/ºC

±0.03%/C°

Brass

MMDX801F

6/8/10

0.5

1.7

1±0.1

0.15

DC-30kHZ

30kG

±0.2% to 30kG

-10°Cto +100°C

±0.08 G/ºC

±0.03%/C°

Brass

MMDX802F Flexible

6/8/10

0.35

1.2

0.5±0.1

0.15

DC-50kHZ

30kG

±0.2% to 30kG

-10°Cto +100°C

±0.08 G/ºC

±0.03%/C°

Resin

MMDX803F Flexible

6/8/10

0.25

0.7

0.5±0.1

0.1

DC-50kHZ

30kG

±0.2% to 30kG

-10°Cto +100°C

±0.08 G/ºC

±0.03%/C°

Resin

Upgradeable to high temperature probe (-10°C - +195°C), low temperature probe (-269°C - +75°C), high and low temperature resistant probe (-196°C - 195°C) and temperature compensated type ( Temperature coefficient: ±0.01%/°C).

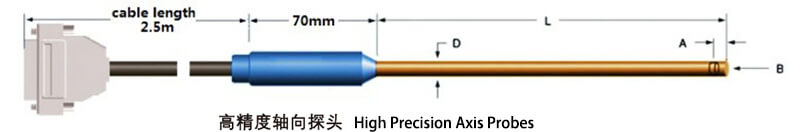

Model	L(cm) approx	D(mm) max	A(mm)	Active area (mm)	Frequency range	Full Scale (Standard)	Magnetic linearity (%rdg)	Oerating temp range	Zero Temp coefficient (max)	Temp coefficient (max)	Stem material
1ADX800F	10/25/50	5	1±0.1	0.15	DC-30KHZ	30kG	±0.2% to 30kG	-10°C to +100°C	±0.08 G/ºC	±0.03%/C°	Brass
1ADX801F	10/25/50	3	1±0.1	0.15	DC-30KHZ	30kG	±0.2% to 30kG	-10°C to +100°C	±0.08 G/ºC	±0.03%/C°	Brass
1ADX802F	10/25/50	2	1±0.1	0.15	DC-30KHZ	30kG	±0.2% to 30kG	-10°C to +100°C	±0.08 G/ºC	±0.03%/C°	Brass
1ADX803F	10/25/50	1.5	1±0.1	0.15	DC-30KHZ	30kG	±0.2% to 30kG	-10°C to +100°C	±0.08 G/ºC	±0.03%/C°	Brass
1ADX804F	10/25/50	1.2	0.5±0.1	0.15	DC-30KHZ	30kG	±0.2% to 30kG	-10°C to +100°C	±0.08 G/ºC	±0.03%/C°	Brass
1ADX63805F	10/25/50	0.9	0.5±0.1	0.1	DC-30KHZ	30kG	±0.5% to 30kG	-10°C to +100°C	±0.08 G/ºC	±0.03%/C°	Brass

Upgradeable to high temperature probe (-10°C - +195°C), low temperature probe (-269°C - +75°C), high and low temperature resistant probe (-196°C - 195°C) and temperature compensated type ( Temperature coefficient: ±0.01%/°C).
