Micro Magneto Optic Kerranalyzing Instrument

Micro Magneto Optic Kerranalyzing Instrument

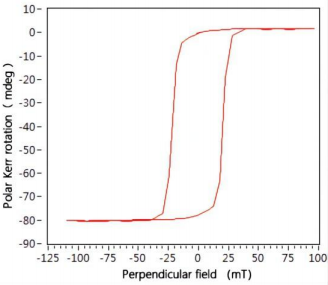

Vertical Hysteresis Measurement Results:

The magneto-optical Kerr effect can be used to measure hysteresis lines with high speed, high accuracy, non-contact and non-destructive (no additional operations such as processing or slicing of the sample), and to obtain information on the coercivity, relative magnetization strength and magnetic anisotropy of magnetic materials. The miniature MOKE magnetic measuring instrument is a self-developed portable instrument with small footprint and fast response, which can meet the rapid and non-destructive testing of various magnetic thin film materials in laboratory research and industrial production. For the optical response of different magnetically anisotropic materials, our instrument is an all-in-one solution that allows customers to quickly measure hysteresis lines without the need for any external instruments or displays.

Micro MOKE system features:

1. Flexible scanning methods, fast scanning and fine scanning according to customer needs. 2. Highly focused laser for easy localized or individual structure performance testing of samples. 3. Self-contained test result saving function, which can record test spectra and scan point results. 4. Comes with a sample holder with sample fixation function, with the positioning function of the sample holder, inserted to test. 5. The instrument is highly integrated, all components are integrated inside the instrument, which is convenient for customers to use and place. 6. The test program is designed based on the L a b V I E W program with an easy-to-use interface (insert sample → start measurement → output results), which simplifies the customer's experience to the maximum extent. 7. The instrument is equipped with two input modes, touch screen and keyboard and mouse, for customers to choose flexibly. 8. The instrument is equipped with abundant external ports, such as U S B, HD port, network port.

Performance indicators and advantages:

●Sample size: up to 10 mm * 10 mm pieces, if you need a larger sample can be customized.

●Magnets: Bipolar magnets are used.

●Magnetic field: rated maximum output magnetic field of 650 mT (higher fields can be coordinated and customized). ●Magnetic field resolution: 50 μT;.

●Magnetic detection sensitivity: Kerr corner detection better than 1 mdeg;

●Air gap: 6 mm.

Functions and application scenarios:

1. Spin/magnetoelectronics .

2. Magnetic nanotechnology .

3. Non-volatile magnetic random memory.

4. Magnetoresistance studies .

5. Magnetic films .

6. Magnetic sensors
