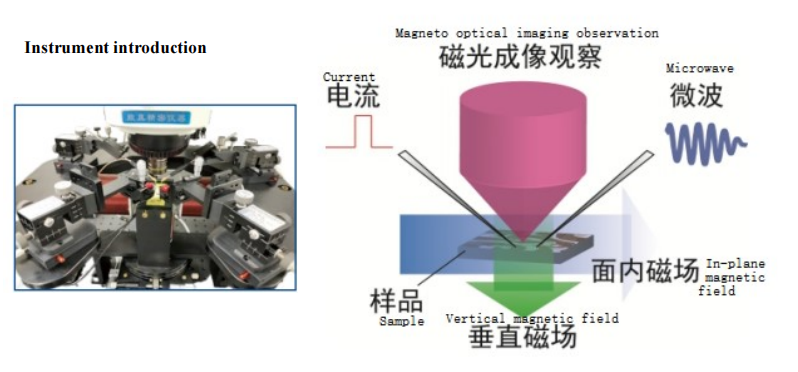

Multifunctional Magneto Optic Kerr Microscopic Imaging System
Kerr microscope has a set of methods to characterize almost all magnetic intrinsic parameters. Compared with other characterization methods, the biggest advantage is that it can be used to characterize the local properties in a small area (220 nm), which provides the possibility for various magnetic control experiments (such as irradiation, voltage control, optical magnetic control) and the characterization of materials with uneven properties.
contact nowMultifunctional Magneto Optic Kerr Microscopic Imaging System
1.1 Test the quality of magnetic material

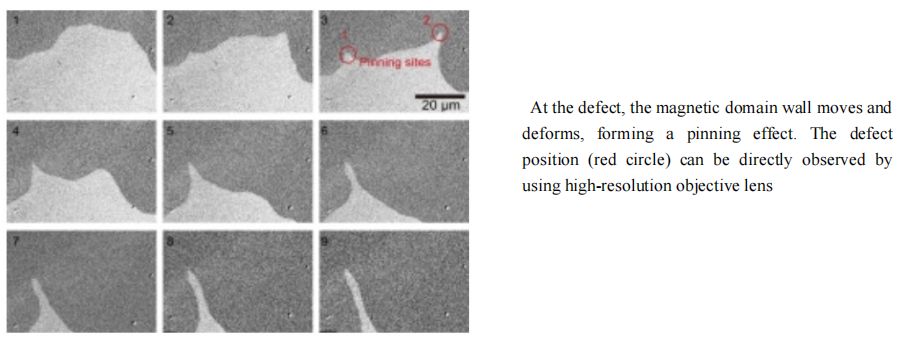

1.2 Detect defect position
Typical applications: Characterization of local magnetic intrinsic parameters
Kerr microscope has a set of methods to characterize almost all magnetic intrinsic parameters. Compared with other characterization methods, the biggest advantage is that it can be used to characterize the local properties in a small area (220 nm), which provides the possibility for various magnetic control experiments (such as irradiation, voltage control, optical magnetic control) and the characterization of materials with uneven properties.

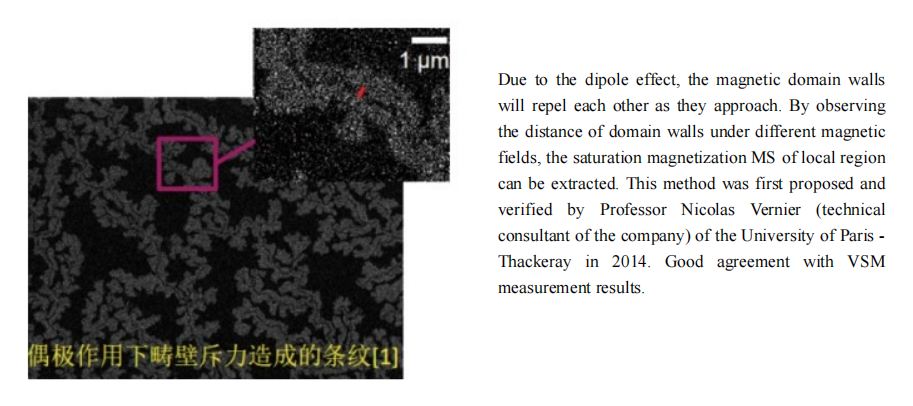

1. Characterization of local saturation magnetization Ms
2. Characterization of local anisotropic energy K
3 Heisenberg exchange interaction constant Aex

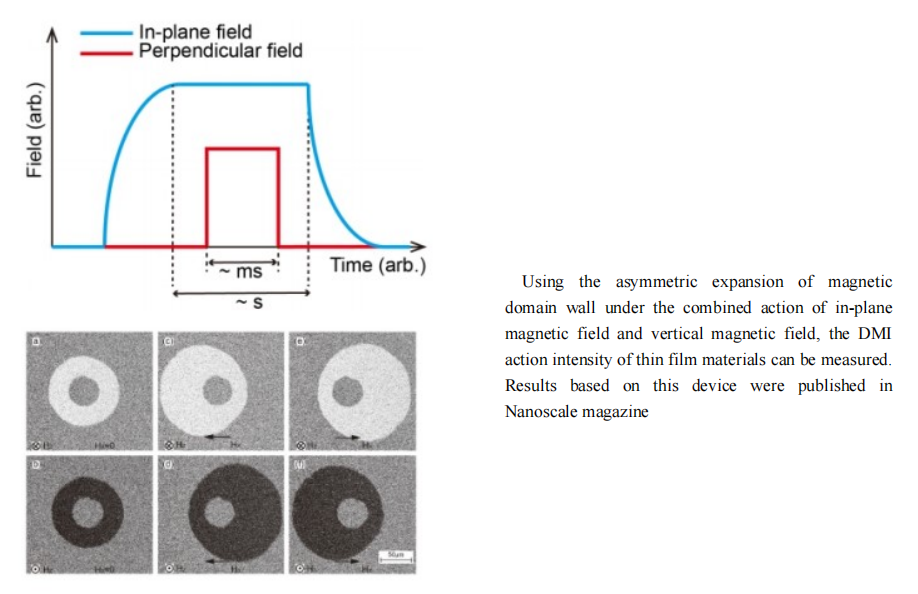

4. Characterization of Dzyaloshinskii-Moriya interaction (DMI)
