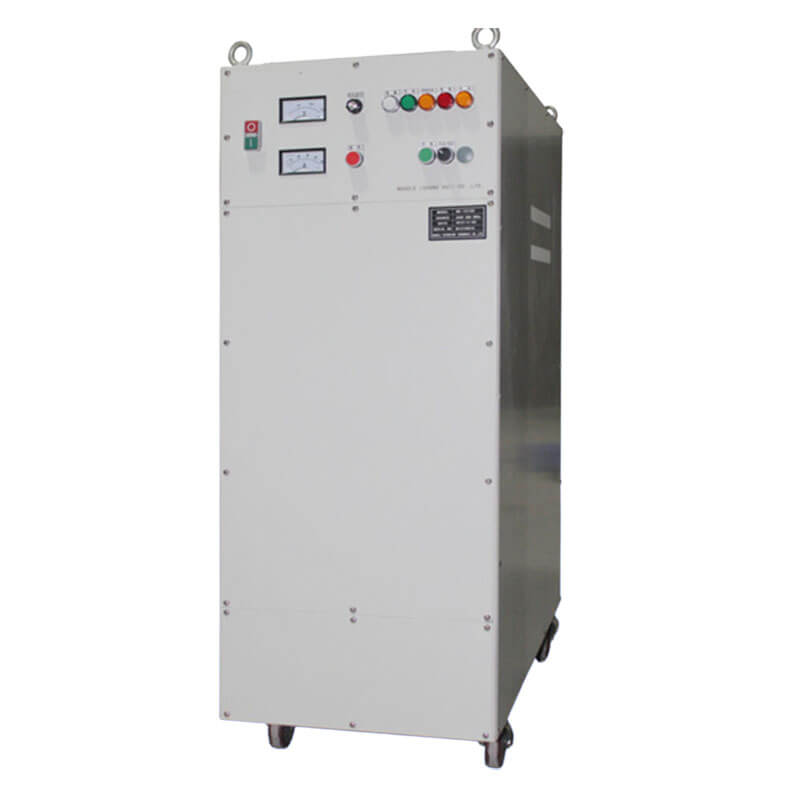

DXME Series Magnetizer
In order to meet different customer needs, downwardly expanding strategy we used in the product line,we have developed ME series magnetizer. This series magnetizers are more cost-effective,more convenient operation,and easy to use.
contact nowDXME Series Magnetizer
In order to meet different customer needs, downwardly expanding strategy we used in the product line,we have developed ME series magnetizer. This series magnetizers are more cost-effective,more convenient operation,and easy to use,using Siemens operation components,easy to operation,safety and reliability,lasting durability
Technical Data
Model | DXME-10C100 | DXME-10C200 | DXME-10C400 | DXME-25C20 | DXME-25C30 | DXME-25C100 | DXME-25C200 |
Input power | 220V 50～60Hz 30A | 220V 50～60Hz 40A | 220V 50～60Hz 60A | ||||
Charge voltage | 50～1000V | 50～2500V | 50～2500V | ||||
Max. output current | 15,000A | 30,000A | |||||
Repeat precision of charge voltage | ±1V | ||||||
The capacity of condenser | 10,000μF | 20,000μF | 40,000μF | 2,000μF | 3,000μF | 10,000μF | 20,000μF |
Charge time | 5S | 9S | 18S | 5S | 8S | 18S | 36S |
Max. energy | 5,000J | 10,000J | 20,000J | 6,250J | 9,375J | 31,250J | 62500J |
Enclosure dimension (mm) | 500W×1000D×1400H | 1000×1000D×1400H | 500W×1000D×1400H | 1000W×1000D×1400H | 1500W×1000D×1400H | ||
Weight | 250Kg | 350Kg | 600Kg | 300Kg | 400Kg | 600Kg | 1000Kg |
Documentation Manual | Chinese or English | ||||||
inquiry now
We will give you a quotation within 24 hours.
-
DX-2012HC Soft Magnetic Material Coercivity Measuring Device
DX 2012HC soft magnetic material coercivity measuring device is mainly used for rapid measurement of soft materials including: pure iron and carbon steel, soft ferrite, magnetic powder and other regular and irregular open circuit samples, and the test method is reliable.
-
DX-100 Hall Effect Measurement System
DX 100 Hall effect test system can be divided into normal temperature, high temperature, low temperature, high and low temperature Hall effect test system; It is used to measure the carrier concentration, mobility, resistivity, Hall coefficient, etc. of semiconductor materials; It is an essential tool for studying the electrical properties of semiconductor materials.
-
DX-9000 Series Vibration Sample Magnetometer
DX-9000 series vibrating sample magnetometer is a kind of magnetometer developed by Xiamen Dexing Magnet Tech. Co., Ltd. The main research and development of the magnetic material measurement system is a new generation of products based on the electromagnet platform.
-
DX-2100AM Magnetization Angle Measurement System
The DX 2100AM magnetization angle measurement system is connected to the independent three component fluxmeter by a three dimensional Helmholtz coil to form a hardware test part;Through a microcomputer conversion of the test data of three components, a complete magnetization angle measurement system is formed.
