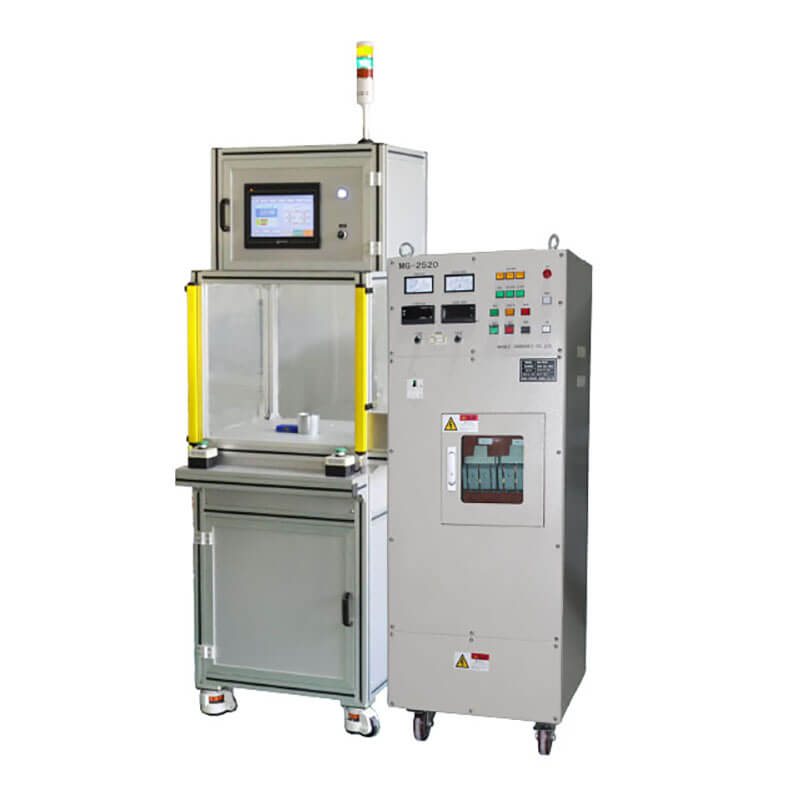

DXMI Series Value Magnetizing Systems
Application of man-machine interface,built-in famous brand PLC,accurate value to magnetize,demagnetizer or reducing magnetization,magnetic properties complete consistent
contact nowDXMI Series Value Magnetizing Systems
Application of man-machine interface,built-in famous brand PLC,accurate value to magnetize,demagnetizer or reducing magnetization,magnetic properties complete consistent.
Model | DXMI-10C100 | DXMI-10C200 | DXMI-25C10 | DXMI-25C20 | DXMI-25C30 | DXMI-35C30 | DXMI-35C60 |
Input power | 220V 50～60Hz 30A | 220V 50～60Hz 40A | 220V 50～60Hz 60A | ||||
Charge voltage | 50～1000V | 50～2500V | 50～3500V | ||||
Max. output current | 15,000A | 30,000A | |||||
Repeat precision of charge voltage | ±1V | ||||||
The capacity of condenser | 10,000μF | 20,000μF | 1,000μF | 2,000μF | 3,000μF | 3,000μF | 6,000μF |
The capacitance charging | 5,000/10,000 | 10,000/20,000 | 1,000 | 1,000/2,000 | 1,000/2,000 /3,000 | 1,000/2,000/3,000 | 3,000/4,000/ |
Charge time | 5S | 9S | 4S | 5S | 8S | 12S | 24S |
Max energy | 5,000J | 10,000J | 3,125J | 6,250J | 9,375J | 18,375J | 36750J |
Enclosure dimension(mm) | 500W×1000D×1400H | 1000W×1000D×2000H | 2000W×1000D×2000H | ||||
Weight | 250Kg | 300Kg | 200Kg | 250Kg | 350Kg | 500Kg | 1000Kg |
Documentation Manual | Chinese or English | ||||||
inquiry now
We will give you a quotation within 24 hours.
-
DX-2012HC Soft Magnetic Material Coercivity Measuring Device
DX 2012HC soft magnetic material coercivity measuring device is mainly used for rapid measurement of soft materials including: pure iron and carbon steel, soft ferrite, magnetic powder and other regular and irregular open circuit samples, and the test method is reliable.
-
DX-100 Hall Effect Measurement System
DX 100 Hall effect test system can be divided into normal temperature, high temperature, low temperature, high and low temperature Hall effect test system; It is used to measure the carrier concentration, mobility, resistivity, Hall coefficient, etc. of semiconductor materials; It is an essential tool for studying the electrical properties of semiconductor materials.
-
DX-9000 Series Vibration Sample Magnetometer
DX-9000 series vibrating sample magnetometer is a kind of magnetometer developed by Xiamen Dexing Magnet Tech. Co., Ltd. The main research and development of the magnetic material measurement system is a new generation of products based on the electromagnet platform.
-
DX-2100AM Magnetization Angle Measurement System
The DX 2100AM magnetization angle measurement system is connected to the independent three component fluxmeter by a three dimensional Helmholtz coil to form a hardware test part;Through a microcomputer conversion of the test data of three components, a complete magnetization angle measurement system is formed.
