One-dimensional Transverse Probe
The gallium arsenide Transverse Hall Probe is usually rectangular and the test area is one millimeter at the front end; It is mainly suitable for space magnetic field, surface magnetic measurement or alternating pulse magnetic field measurement; can also be customized in special areas of magnetic field measurement probes, such as high temperature, low temperature or high frequency.
contact nowOne-dimensional Transverse Probe
One-dimensional Transverse Probe:
Probe length can be customized;
Array probe can be customized
Can add temperature sensor inside the probe Active area

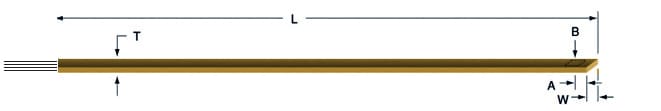

Model | L(cm) approx | T (mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient (max) | Temp coefficient (max) | Encapsulation material |
CDX800F | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.50% - 20kG | -10℃ ~ +75℃ | ±0.11 G/℃ | ±0.015%/℃ | Brass |
CDX801F | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.50% - 20kG | -10℃ ~ +75℃ | ±0.11 G/℃ | ±0.015%/℃ | Brass |
CDX802F | 6/8/10 | 0.6 | 1.7 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.50% - 20kG | -10℃ ~ +75℃ | ±0.11 G/℃ | ±0.015%/℃ | Brass |
MDX801F | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.50% - 20kG | -10℃ ~ +75℃ | ±0.11 G/℃ | ±0.015%/℃ | Brass |
MDX802F | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.50% - 20kG | -10℃ ~ +75℃ | ±0.11 G/℃ | ±0.015%/℃ | Brass |
MDX803F (Flexible) | 6/8/10 | 0.35 | 1.2/0.8 | 0.2±0.05 | 0.15 | DC-50kHz | 30kG | ±0.50% - 20kG | -10℃ ~ +75℃ | ±0.11 G/℃ | ±0.015%/℃ | Polytesin |
MMDX804F (Flexible) | 6/8/10 | 0.25 | 1.2/0.8 | 0.2±0.05 | 0.1 | DC-50kHz | 30kG | ±0.50% - 20kG | -10℃ ~ +75℃ | ±0.11 G/℃ | ±0.015%/℃ | Polytesin |
High-precision one-dimensional transverse probe:
Probe length can be customized;
Array probe can be customized
Can add temperature sensor inside the probe Active area
Suitable for DX-150 and DX-160 gauss meters
Model | L(cm) approx | T(mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient (max) | Temp coefficient (max) | Encapsulation material |
MCDX800F | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Brass |
MCDX801F | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Brass |
MCDX802F | 6/8/10 | 0.6 | 1.7 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Brass |
MMDX801F | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Brass |
MMDX802F | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Brass |
MMDX803F (Flexible) | 6/8/10 | 0.35 | 1.2/0.8 | 0.2±0.05 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Polytesin |
MMDX804F (Flexible) | 6/8/10 | 0.25 | 1.2/0.8 | 0.2±0.05 | 0.1 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Polytesin |
Ultra-high precision one-dimensional transverse probe:
Probe length can be customized;
Array probe can be customized
Can add temperature sensor inside the probe Active area
Suitable for dx-180, dx-210, dx-360 gauss meters
Model | L(cm) approx | T(mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient (max) | Temp coefficient (max) | Encapsulation material |
HCDX800F | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-1000kHz | 300kG | ±0.05% ~ 30kG | -10℃ ~ +100℃ | ±0.06 G/℃ | ±0.007%/℃ | Brass |
HCDX801F | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-1000kHz | 300kG | ±0.05% ~ 30kG | -10℃ ~ +100℃ | ±0.06 G/℃ | ±0.007%/℃ | Brass |
HCDX802F | 6/8/10 | 0.6 | 1.7 | 1±0.1 | 0.15 | DC-1000kHz | 300kG | ±0.05% ~ 30kG | -10℃ ~ +100℃ | ±0.06 G/℃ | ±0.007%/℃ | Brass |
HMDX801F | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-1000kHz | 300kG | ±0.05% ~ 30kG | -10℃ ~ +100℃ | ±0.06 G/℃ | ±0.007%/℃ | Brass |
HMDX802F | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-1000kHz | 300kG | ±0.05% ~ 30kG | -10℃ ~ +100℃ | ±0.06 G/℃ | ±0.007%/℃ | Brass |
HMDX803F (Flexible) | 6/8/10 | 0.35 | 1.2/0.8 | 0.2±0.05 | 0.15 | DC-1000kHz | 300kG | ±0.2% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.007%/℃ | Polytesin |
HMDX804F (Flexible) | 6/8/10 | 0.25 | 1.2/0.8 | 0.2±0.05 | 0.1 | DC-1000kHz | 300kG | ±0.5% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.007%/℃ | Polytesin |
Flexible high-precision one-dimensional transverse probe (suitable for special environment or high frequency) :
Model | L(cm) approx | T(mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient (max) | Temp coefficient (max) | Encapsulation material |
MCDX800F-R | 6/8/10 | 1.5 | 2.4 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.015%/℃ | Plastic |
MCDX801F-R | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.015%/℃ | Plastic |
MCDX802F-R | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.015%/℃ | Plastic |
MCDX803F-R | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.015%/℃ | Plastic |
High-precision temperature compensation one-dimensional transverse hall probe (with temperature sensor) :
Model | L(cm) approx | T(mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient (max) | Temp coefficient (max) | Encapsulation material |
MCDX800F-T | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +100℃ | ±0.08G/℃ | ±0.01%/℃ | Brass |
MCDX801F-T | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.01%/℃ | Brass |
HCDX800F-T | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.05% ~ 30kG | -10℃ ~ +100℃ | ±0.08G/℃ | ±0.01%/℃ | Brass |
HCDX801F-T | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-100kHz | 30kG | ±0.05% ~ 30kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.01%/℃ | Brass |
High precision and high magnetic field one-dimensional transverse hall probe:
Model | L(cm) approx | T (mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity(%rdg) | Operating temp range | Zero Field Temp coefficient (max) | Temp coefficient (max) | Encapsulation material |
HCDX 800F-H | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.05% ~ 30kG ±0.8% ~ 50kG ±1.5% ~ 100kG ±5% ~ 300kG | -10℃ ~ +100℃ | ±0.08G/℃ | ±0.01%/℃ | Brass |
HCDX 801F-H | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-100kHz | 300kG | ±0.05% ~ 30kG ±0.8% ~ 50kG ±1.5% ~ 100kG ±5% ~ 300kG | -10℃ ~ +100℃ | ±0.08 G/℃ | ±0.01%/℃ | Brass |
High precision low magnetic field one-dimensional transverse hall probe:
Model | L(cm) approx | T(mm) max | W (mm) | A (mm) | Accuracy | Full Scale (Standard) | Magnetic linearity(%rdg) | Operating temp range | Zero Field Temp coefficient(max) | Temp coefficient (max) | Encapsulation material |
LDX801F | 4.5/7 | 2.8 | 10 | 2±0.1 | 0.1uT | 300uT | ±0.2% - 100uT ±0.4% - 300uT | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.05%/℃ | Fiber |
LDX802F | 4.5/7 | 2.3 | 10 | 2±0.1 | 0.01uT | 600uT | ±0.2% - 100uT ±0.4% - 300uT | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Fiber |
LDX803F | 4.5/7 | 3 | 11 | 1±0.1 | 0.01uT | 600uT | ±0.2% - 100uT ±0.4% - 300uT | -10℃ ~ +75℃ | ±0.08 G/℃ | ±0.015%/℃ | Fiber |
High-precision high-temperature resistance temperature compensation one-dimensional transverse hall probe:
Model | L(cm) approx | T (mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient(max) | Temp coefficient (max) | Encapsulation material |
CDX800F-HT | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +195℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
CDX801F-HT | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +195℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
CDX802F-HT | 6/8/10 | 0.6 | 1.7 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +195℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
MDX801F-HT | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +195℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
MDX802F-HT | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +195℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
MDX803F-HT | 6/8/10 | 0.35 | 1.2/0.8 | 0.2±0.05 | 0.15 | DC-50kHz | 30kG | ±0.2% ~ 30kG | -10℃ ~ +195℃ | ±0.08 G/℃ | ±0.015%/℃ | Polyresin |
High-precision low-temperature resistance temperature compensation one-dimensional transverse hall probe:
Model | L(cm) approx | T (mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient(max) | Temp coefficient (max) | Encapsulation material |
MCDX800F-LT | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.2% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
MCDX801F-LT | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.2% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
MMDX801F-LT | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.2% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
MMDX802F-LT | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.2% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
High-precision high and low-temperature resistance temperature compensation one-dimensional transverse hall probe:
Model | L(cm) approx | T (mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient(max) | Temp coefficient (max) | Encapsulation material |
HCDX800F-HL | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +200℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
HCDX801F-HL | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +200℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
HMDX801F-HL | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +200℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
HMDX802F-HL | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +200℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
Ultra High precision low-temperature resistance temperature compensation one-dimensional transverse hall probe:
Model | L(cm) approx | T (mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Full Scale (Standard) | Magnetic linearity (%rdg) | Operating temp range | Zero Field Temp coefficient(max) | Temp coefficient (max) | Encapsulation material |
HCDX800F-LT | 6/8/10 | 1 | 2.6 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
HCDX801F-LT | 6/8/10 | 0.8 | 2.2 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
HMDX801F-LT | 6/8/10 | 0.5 | 1.6 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
HMDX802F-LT | 6/8/10 | 0.5 | 1.2 | 1±0.1 | 0.15 | DC-30kHz | 30kG | ±0.05% ~ 20kG | -269℃ ~ +75℃ | ±0.08 G/℃ | ±0.007%/℃ | Brass |
OEM Mirco Transverse Probes:
Probe length can be customized;
Array probe can be customized
Can add temperature sensor inside the probe Active area
Delivery time is 1-4 weeks
Model | L (cm) approx | T (mm) max | W (mm) | A (mm) | Active area (mm) | Frequency range | Magnetic sensitivity | Magnetic linearity (%rdg) | Operating temp range | Unbalanced voltage (mv) | Temp coefficient (max) | Encapsulation material |
CDX801A | 5.5/8 | 0.78 | 2 | 1±0.1 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2% to 30kG | -20°C to +75°C | ≤±0.10 | -0.03%/C° | Brass |
CDX801B | 5.5/8 | 0.78 | 2 | 1±0.1 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3% to 30kG | -20°C to +75°C | ≤±0.20 | -0.03%/C° | Brass |
CDX802A | 5.5/8 | 0.62 | 1.5 | 1±0.1 | 0.15 | DC-100KHZ | 2.5mV/kG to 15mV/kG | <±0.2% to 30kG | -20°C to +75°C | ≤±0.10 | -0.03%/C° | Brass |
CDX802B | 5.5/8 | 0.62 | 1.5 | 1±0.1 | 0.15 | DC-100KHZ | 2.5mV/kG to 15mV/kG | <±0.3% to 30kG | -20°C to +75°C | ≤±0.20 | Brass | |
-0.03%/C° | ||||||||||||
MDX801A | 5.5/8 | 0.5 | 1.68 | 1±0.1 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2% to 30kG | -20°C to +75°C | ≤±0.10 | -0.03%/C° | Brass |
MDX801B | 5.5/8 | 0.5 | 1.68 | 1±0.1 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3% | -20°C to +75°C | ≤±0.20 | -0.03%/C° | Brass |
to | ||||||||||||
30kG | ||||||||||||
MDX802A (Flexible) | 5.5/8 | 0.35 | 0.7 | 0.5±0.05 | 0.15 | DC-100KHZ | 2.5mV/kG to 15mV/kG | <±0.2% to 30kG | -20°C to +75°C | ≤±0.10 | -0.03%/C° | Polyresin |
MDX802B (Flexible) | 5.5/8 | 0.35 | 0.7 | 0.5±0.05 | 0.15 | DC-100KHZ | 2.5mV/kG to 15mV/kG | <±0.3% to 30kG | -20°C to +75°C | ≤±0.20 | -0.03%/C° | Polyresin |
